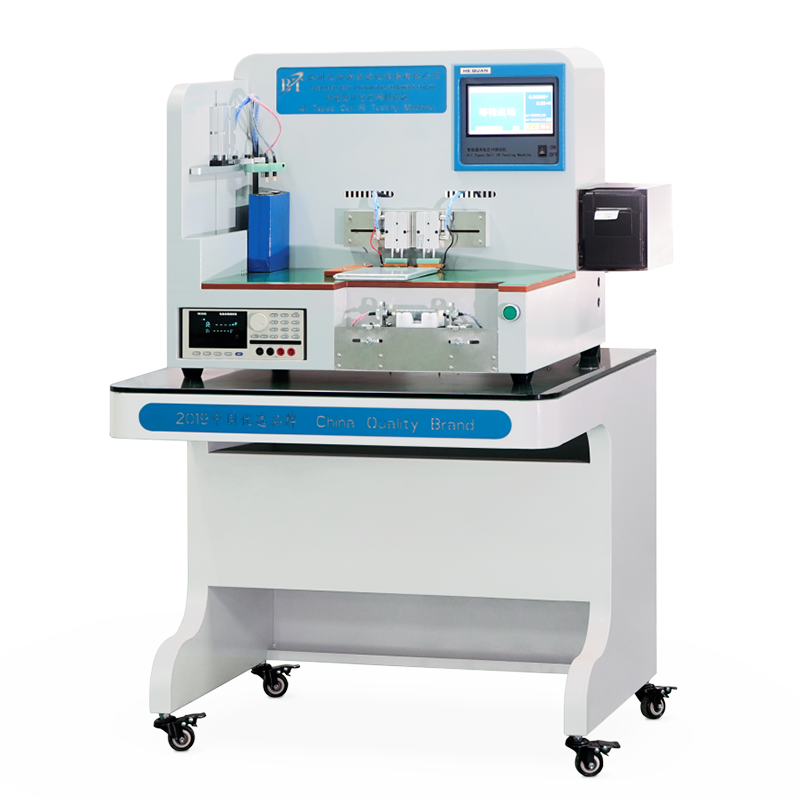

BT-1832 FX Universal sorter
2025-11-20 16:03:36
Product features：
Main function：
Test the voltage and interal resistance ofcylindrical /square aluminum - shell /polymer lithium -ion batteries
Divide into grades according to the set voltage andintemal resistance values, and broadcast the gradenumber
Support printing barcodes, test dates, and voltage -intemal resistance values
It is used for IQC incoming material inspection andsmall - batch production
一、Main function
Test the voltage and interal resistance ofcylindrical /square aluminum - shell /polymer lithium -ion batteries
Divide into grades according to the set voltage andintemal resistance values, and broadcast the gradenumber
Support printing barcodes, test dates, and voltage -intemal resistance values
It is used for IQC incoming material inspection andsmall - batch production
二、Product parameters
Power | AC220V 50/60HZ 0.6KW | Voltage | 0.00000V-6.0000V | ||
Air pressure | 0.4-0.8Mpa,Air source must be used when there is a filter device to ensure that the flow of water-free impurities. | Intemal resistance | 00.00mΩ-999.99mΩ | ||
Optional Gear | 8-16OK,1NG | ||||
Standard test instrument | Hk3561 | Test Data | It can save Excel tables and supports readng oruplbading test data | ||
Optional tester | HIOKI BT3561AHk3560 | Communication Interface | RS485232TCP | ||
Control device | PLC Touch screen control | Test method | 4-wire system | ||
Run power | cyinder/stepping motor | Test pin | 0.3KG | ||
Adaptive cell range | 14430/14500/18500/18650/21700/26650/ 26700/32650/32700/32140/40135/60140 | Equipment dimensions | L1490*W700^H1580MM | ||
Droducfiyh | About 5000PCS celshour | Weight | 190KG | ||
